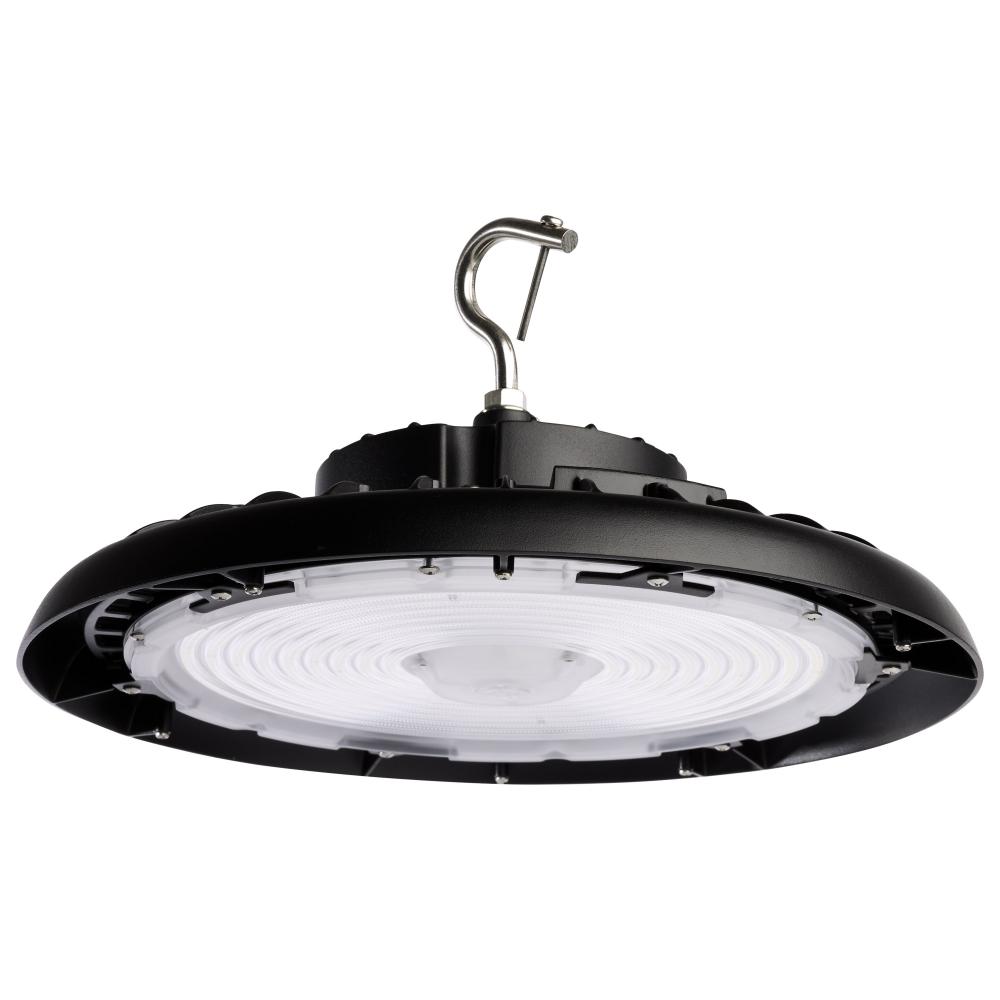

200 Watt UFO LED High Bay; 5000K; 29000 Lumens; 277-480 Volt; Black Finish (65/806R2)
by Nuvo
200 Watt UFO LED High Bay; 5000K; 29000 Lumens; 277-480 Volt; Black Finish
Product Specification
Item #
65/806R2
Dimensions
Height: 8.11"
Width: 13.39"
Additional product details
Vendor Item #
65/806R2
Category
Utility
Subcategory
Other Utility
Option
LED
, Prop 65
Lumens
3300+
Kelvin
5501-6000
Category
Hi-Bay
Sub Category
UFO
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Diameter
13.39
Dimmable
Yes-Dimmable
Each Height
4.92
Each Length
14.17
Each Width
14.17
Lumens
29000L
Tariff Code
9405.11.6020
Warranty
5 Year Limited - Fixtures
Wire Length
72
Amps
0.722-0.417A
ANSI Base
Integrated
Beam Angle
90
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium
DLC Primary Use
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube
0.5717
Each Quantity
1
Efficacy
145.00 LPW
FCC Compliant
Yes
Feature 1
Integrated Sensor Port
Feature 2
IP65
Feature 3
6KV Surge Protection
Feature 4
6 Foot Whip
Feature 5
90 degree Beam Angle
Feature 6
50,000 Hours
Feature 7
5 Year Warranty
Finish Family
Black
Has Emergency Battery
No
HID Equiv
600W
Impact Rating (IK)
IK08
Incandescent Equivalent
1500W
Includes
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor
Indoor
Installation Notes
Mounting Height: Up to 30 feet
IP Rating
IP65
JA8 Compliant
No
Lens Material
Polycarbonate (PC)
Long Description
Introducing 65-806R2, SATCO|NUVO's 200-watt, 277-480 volt, 5000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase fo
Material
Die-Cast Aluminum
Mounting Procedure
Pendant Hanging Surface
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-40C (-40F) to +45C (+113F)
Pack Type
Kraft Box
Photocell
Optional Add-On
Power Factor
0.9
Quantity In Pack
1
R9 Value
5
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
Introducing SATCO|NUVO's newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrat
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Short Description
LED UFO HIGHBAY 200W/5000K
Temperature (CCT)
5000K
Title 20 Compliant
No
Total Harmonic Distortion
15%
Wattage Selectable
No
Weight Lb.
10.11
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
238
00
/
/ 1
($238.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 785 items available.
