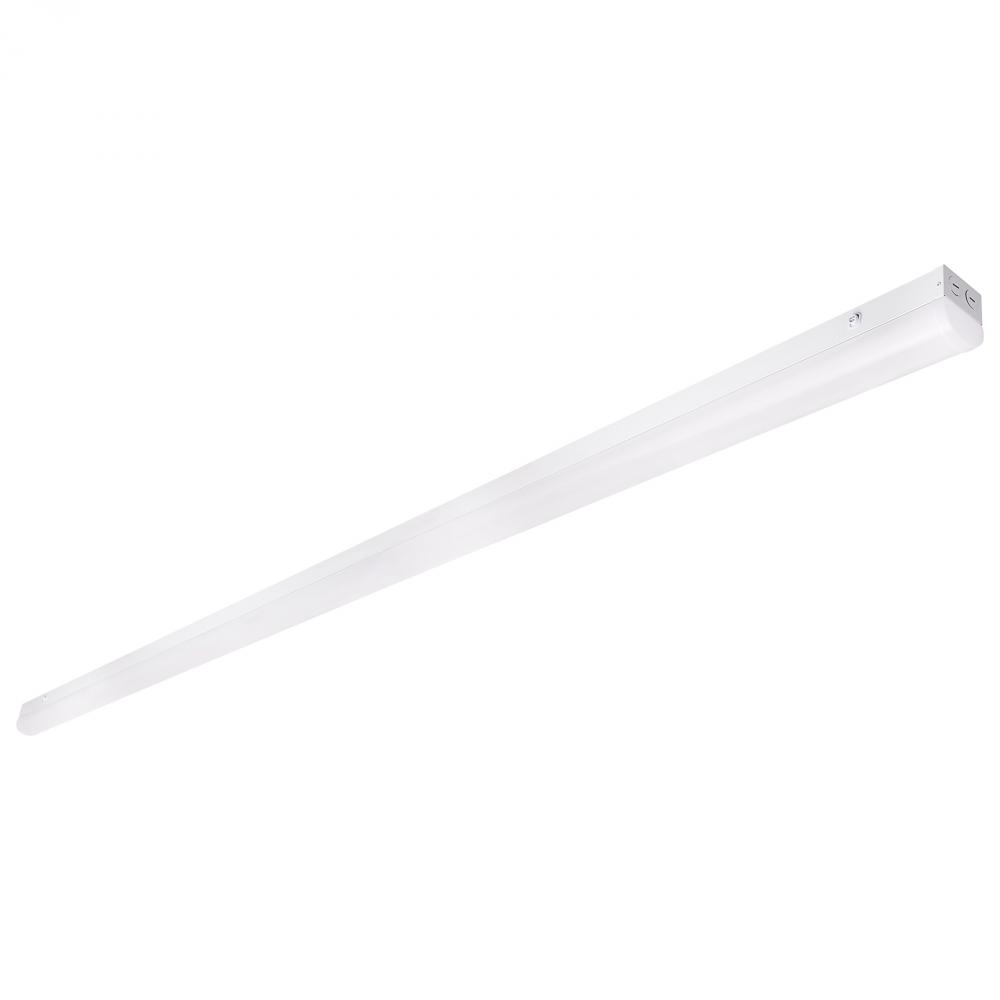

8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor (65/1702)
by Nuvo
8 ft. LED; Linear Strip Light; Wattage and CCT Selectable; White Finish; Microwave Sensor
Product Specification
Item #
65/1702
Dimensions
Height: 3.27"
Width: 2.95"
Additional product details
Vendor Item #
65/1702
Category
Undercabinet
Subcategory
LED Undercabinet Lights
Option
LED
, Prop 65
Lumens
3300+
Kelvin
5501-6000
Category
Linear Strip
Sub Category
Strip Fixture
Style
Utility
Additional Info
Other DLC Listings: S-9FLKU1, Standard, Direct Linear Ambient Luminaires; S-RH9PMZ, Standard, Low-Bay Luminaires for Commercial and Industrial Buildings.
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Neutral White to Daylight
Dimmable
Yes-Dimmable
Each Height
5.32
Each Length
98.03
Each Width
5.2
Length
96
Lumens
3900L-6750L
Tariff Code
9405.11.6010
Warranty
5 Year Limited - Fixtures
Amps
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
120
B_U_G_Rating
B1-U3-G1
CA Prop-65
Lead
CCT Selectable
Yes
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Country Of Origin
Vietnam
CRI
80
Dimmable Down To
100 to 10 percent
Dimmable Function
0-10V Dimming Only
DLC Classification
Premium; Standard; Standard
DLC Primary Use
Stairwell and Passageway Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires
Each Cube
1.5694
Each Quantity
1
Efficacy
130.00/133.13/135.00 LPW
FCC Compliant
Yes
Feature 1
CCT & Wattage Selectable
Feature 2
Flicker Free Driver
Feature 3
0-10V Dimmable
Feature 4
Multiple Mounting Options
Feature 5
DLC Premium
Feature 6
Integrated Microwave Sensor
Feature 7
Ultra Slim Design
Finish Family
White
Flicker Free
Yes
Has Driver
Yes
HID Equiv
150W-200W
Incandescent Equivalent
150W-175W
Indoor Outdoor
Indoor
IOT Enabled
No
IP Rating
IP20
JA8 Compliant
No
Lens Finish
White
Lens Material
Polycarbonate (PC)
Long Description
The SATCO|NUVO 65-1702 LED 8-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K and 3-Wattage options - 30W, 40W, 50W - the user can tailor the ligh
Material
Steel
Mounting Diameter
4.75
Mounting Procedure
Ceiling/Wall
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +60C (+140F)
Pack Type
Box
Photocell
Bi-Level Microwave Sensor
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod
Safety Listing
cULus - Listed
SDS class
LED_Fixture
Sensor Type
Microwave
Short Description
8' LINEAR STRIP W/SENSOR
Temperature (CCT)
3500K/4000K/5000K
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
10.77%
Wattage Selectable
Yes
Weight Lb.
6.84
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
218
00
/
/ 1
($218.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer quantity on hand unavailable.
Point of Sale
